Lasco's Diamond Core Drills

Diamond Core Drills are made by diamond coating one end of a hollow metal tube. Use these diamond core drill bits to make holes in a variety of hard to cut materials. Unlike conventional twist drills, diamond drills work by gently grinding (or sanding) the material you are cutting. This process takes time, you have to be patient. A core drill will cut more quickly than a solid drill since it is only cutting out a small circle of material. The larger size core drill bits will also give you a useable core, but the core from the smaller drill bits are usually destroyed during the cutting process. These tools work on all types of stone, glass, tile, composites, plastics, resins, porcelain, eggs, and much more.

The smaller sizes can be used in a hand drill or rotary tool (like a Dremel or Foredom), but the larger sizes should be used in a drill press. Please note: Most drill presses can accommodate shank sizes of 1/2 inch or less. If you want to use the 5/8 inch core drill, you should first make sure your drill press chuck will accept a 5/8 inch bit.

Button to Open a Fillable Order Form

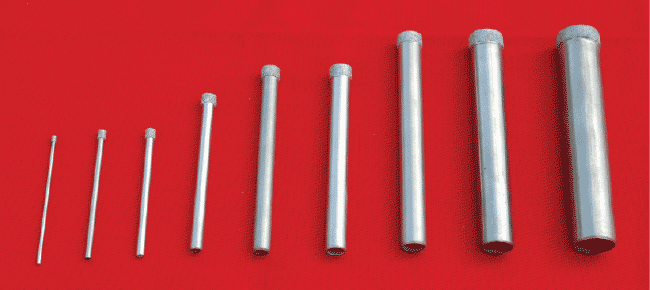

Core Drill Set

The Diamond Core Drill Set pictured above consists of 1 piece each of the following sizes (1/16 inch, 3/32 inch, 1/8 inch, 3/16 inch, 1/4 inch, 5/16 inch, 3/8 inch, 1/2 inch, and 5/8 inch) a total of 9 pieces.

Buy Core Drill Set Button

Or Purchase Individual Core Drill Sizes Listed Below

Click On The Tool To Make Your Selection

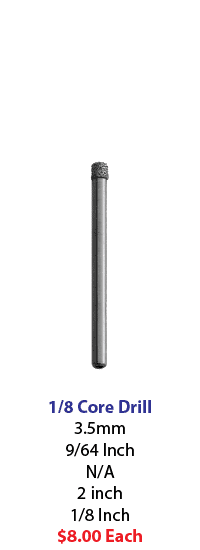

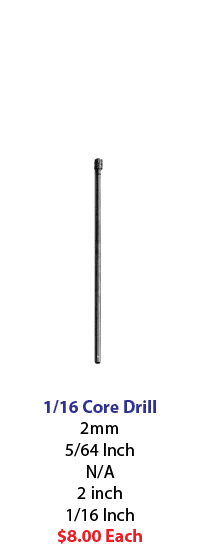

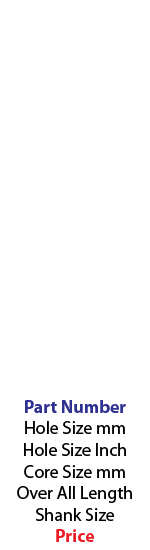

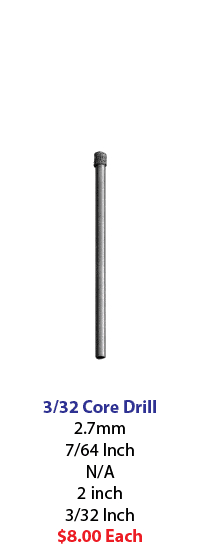

Core Drill Key1/16 Core Drill3/32 Core Drill1/8 Core Drill

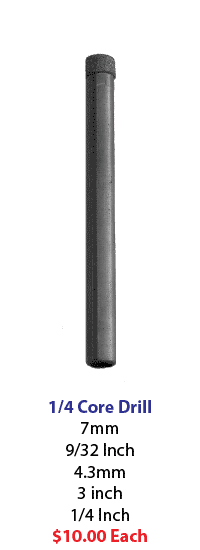

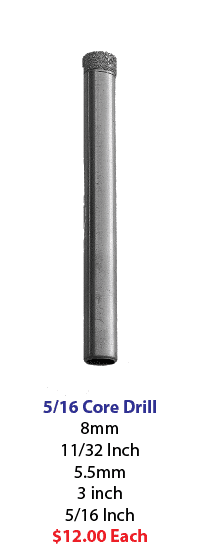

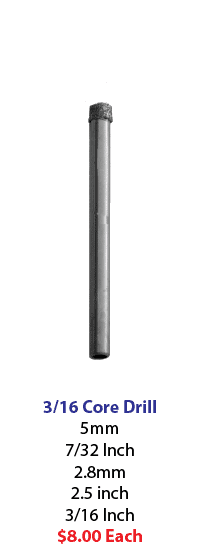

Core Drill Key3/16 Core Drill1/4 Core Drill5/16 Core Drill

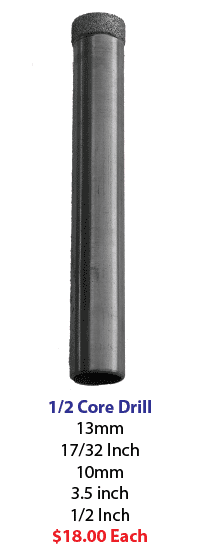

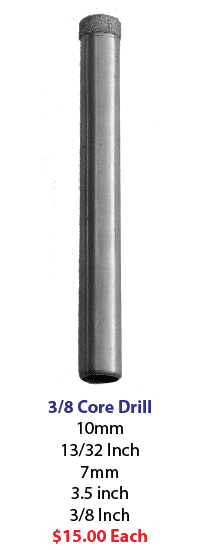

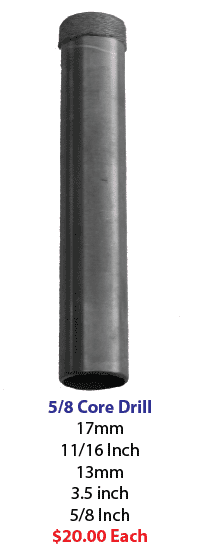

Core Drill Key3/8 Core Drill1/2 Core Drill5/8 Core Drill
