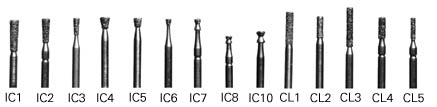

Head | IC1 | IC2 | IC3 | IC4 | IC5 | IC6 | IC7 | IC8 | IC10 | CL1 | CL2 | CL3 | CL4 | CL5 |
Length | 1/4" | 3/16" | 1/8" | 5/64" | 1/16" | 3/64" | 5/64" | 1/16" | 3/32" | 1/4" | 11/64" | 5/16" | 11/64" | 5/32" |
Diameter | .070" | .070" | .050" | .070" | .070" | .045" | .050" | .055" | .070" | .065" | .065" | .060" | .060" | .045" |
Length | 7mm | 5mm | 3mm | 2mm | 1.5mm | 1.5mm | 2.5mm | 1.5mm | 2.5mm | 7mm | 5mm | 8mm | 5mm | 5mm |
Diameter | 1.8mm | 1.8mm | 1.3mm | 1.9mm | 1.8mm | 1.2mm | 1.3mm | 1.4mm | 1.7mm | 1.6mm | 1.6mm | 1.5mm | 1.5mm | 1.2mm |

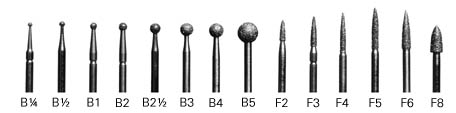

Head | B1/4 | B1/2 | B1 | B2 | B2-1/2 | B3 | B4 | B5 | F2 | F3 | F4 | F5 | F6 | F8 |
Length | 3/16" | 1/4" | 9/32" | 5/16" | 5/16" | 7/32" | ||||||||
Diameter | .035" | .050" | .060" | .070" | .090" | .110" | .125" | .175" | .050" | .055" | .0.55" | .060" | .075" | .100" |
Length | 4mm | 6mm | 8mm | 8mm | 8mm | 6mm | ||||||||
Diameter | 0.8mm | 1.2mm | 1.4mm | 1.8mm | 2.2mm | 2.8mm | 3.1mm | 4.4mm | 1.2mm | 1.4mm | 1.3mm | 1.4mm | 1.9mm | 2.5mm |

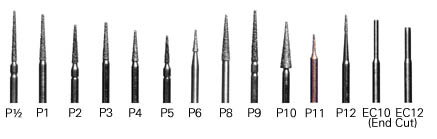

Head | P1/2 | P1 | P2 | P3 | P4 | P5 | P6 | P8 | P9 | P10 | P11 | P12 | EC10 | EC12 |
Length | 27/64" | 25/64" | 5/16" | 5/16" | 1/4" | 7/32" | 3/16" | 3/8" | 27/64" | 3/8" | 13/64" | 1/8" | ||
Diameter | .045" | 0.55" | .060" | .055" | .060" | .045" | .045" | .085" | .065" | .100" | .025" | .040" | .050" | |
Length | 10mm | 10mm | 8mm | 8mm | 6mm | 6mm | 5mm | 10mm | 10mm | 10mm | 5mm | 3mm | ||
Diameter | 1.2mm | 1.4mm | 1.5mm | 1.4mm | 1.5mm | 1.2mm | 1.2mm | 2.1mm | 1.6mm | 2.5mm | 1.5mm | 0.6mm | 1.0mm | 1.2mm |
