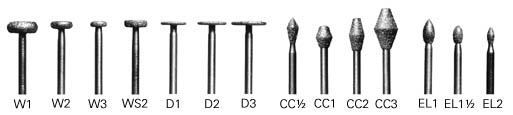

Head | W1 | W2 | W3 | WS2 | D1 | D2 | D3 | CC1/2 | CC1 | CC2 | CC3 | EL1 | EL1-1/2 | EL2 |
Length | 0.095" | 0.070" | 0.045" | 0.065" | 0.025" | 0.025" | 0.025" | 7/32" | 3/16" | 7/32" | 5/16" | 7/32" | 5/32" | 1/8" |
Diameter | 0.250" | 0.180" | 0.140" | 0.200" | 0.200" | 0.230" | 0.285" | 0.100" | 0.135" | 0.130" | 0.195" | 0.100" | 0.085" | 0.065" |
Length | 2.5mm | 1.9mm | 1.1mm | 1.6mm | 0.6mm | 0.6mm | 0.6mm | 7mm | 5mm | 7mm | 8mm | 5mm | 4mm | 3mm |
Diameter | 6.3mm | 4.5mm | 3.3mm | 5mm | 5mm | 6mm | 7mm | 2.5mm | 3.5mm | 3.3mm | 4.9mm | 2.5mm | 2.2mm | 1.6mm |

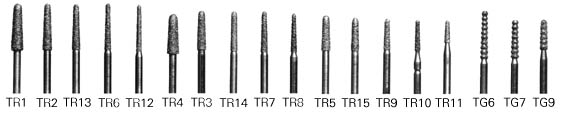

Head | TR1 | TR2 | TR13 | TR6 | TR12 | TR4 | TR3 | TR14 | TR7 | TR8 | TR5 | TR15 | TR9 | TR10 | TR11 | TG6 | TG7 | TG9 |
Length | 3/8" | 3/8" | 3/8" | 3/8" | 3/8" | 11/32" | 11/32" | 11/32" | 11/32" | 11/32" | 5/16" | 5/16" | 5/16" | 5/16" | 3/16" | 3/8" | 11/32" | 5/16" |
Diameter | .100" | .080" | .070" | .060" | .050" | .110" | .080" | .070" | .060" | .050" | .080" | .070" | .060" | .050" | .050" | .070" | .070" | .070" |
Tip Dia. | .070" | .060" | .050" | .040" | .030" | .075" | .060" | .050" | .040" | .030" | .060" | .050" | .040" | .030" | .030" | .050" | .050" | .065" |
Length | 10mm | 10mm | 10mm | 10mm | 10mm | 8mm | 8mm | 8mm | 8mm | 8mm | 7mm | 7mm | 7mm | 6mm | 5mm | 10mm | 8mm | 8mm |
Diameter | 2.5mm | 2mm | 1.8mm | 1.5mm | 1.2mm | 2.7mm | 2.1mm | 1.9mm | 1.5mm | 1.2mm | 2mm | 1.8mm | 1.5mm | 1.2mm | 1.3mm | 1.7mm | 1.8mm | 1.8mm |
Tip Dia. | 1.9mm | 1.5mm | 1.2mm | 1mm | 0.8mm | 1.9mm | 1.5mm | 1.3mm | 1mm | 0.8mm | 1.5mm | 1.3mm | 1mm | 0.8mm | 0.9mm | 1.3mm | 1.4mm | 1.7mm |

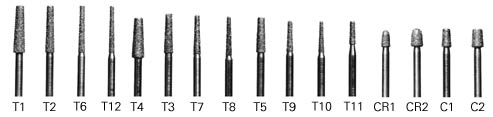

Head | T1 | T2 | T6 | T12 | T4 | T3 | T7 | T8 | T5 | T9 | T10 | T11 | CR1 | CR2 | C1 | C2 |
Length | 3/8" | 3/8" | 3/8" | 3/8" | 11/32" | 11/32" | 11/32" | 11/32" | 5/16" | 5/16" | 5/16" | 3/16" | 5/32" | 5/32" | 5/32" | 5/32" |
Diameter | .100" | .080" | .060" | .050" | .110" | .075" | .060" | .050" | .080" | .060" | .050" | .050" | .075" | .100" | .075" | .100" |
Tip Dia. | .070" | .060" | .040" | .030" | .075" | .055" | .040" | .030" | .060" | .040" | .030" | .035" | .060" | .085" | .060" | .085" |
Length | 10mm | 10mm | 10mm | 10mm | 8mm | 8mm | 8mm | 8mm | 7mm | 7mm | 6.5mm | 5mm | 4mm | 4mm | 4mm | 4mm |
Diameter | 2.5mm | 2.1mm | 1.5mm | 1.3mm | 2.7mm | 1.8mm | 1.4mm | 1.2mm | 2mm | 1.5mm | 1.3mm | 1.3mm | 1.8mm | 2.5mm | 1.9mm | 2.5mm |
Tip Dia | 1.8mm | 1.5mm | 1mm | 0.8mm | 1.8mm | 1.4mm | 1.1mm | 0.8mm | 1.5mm | 1mm | 0.8mm | 0.9mm | 1.4mm | 2.1mm | 1.5mm | 2.2mm |
* Note Dimensions are based on 150 Grit Tools & can vary +/- 0.005" - Finer Grits will be smaller, Coarser Grits will be Larger.
